IDEA StatiCa Detail and AS Standards

Article by Khaled Ghaedi, Ph.D. (Senior Technical Consultant - Engineering, BuildingPoint Australia)

For structural engineers, concrete design often sits between simplified theory and real structural behaviour. Discontinuity regions, deep beams, walls with openings, anchorage zones and transfer elements, rarely behave in a way that is fully captured by traditional hand methods. At the same time, tools capable of modelling these regions in detail have historically been difficult to apply in everyday design or justify within a code-based workflow.

With the implementation of AS 3600:2018 (Australian Standard for Concrete Structures) in IDEA StatiCa Detail, that gap has effectively closed for Australian structural engineers. Engineers can now apply advanced numerical analysis methods to concrete detailing problems, while relying on the Compatible Stress Field Method (CSFM), producing transparent and auditable results that align with local expectations of safety, serviceability, and robustness. The implementation includes AS 3600 materials, nomenclature, stress–strain models, and code‑consistent bond and anchorage provisions.

These concepts are further explored in a technical webinar presented by BuildingPoint Australia, where Detail 2D and Detail 3D are demonstrated on practical examples aligned with Australian standards. The session provides additional insight into modelling strategies and result interpretation for everyday engineering applications and is available at:

https://buildingpoint.com.au/concrete-detailing-with-idea-statica/

Detail 2D and Detail 3D: different dimensions, different solutions

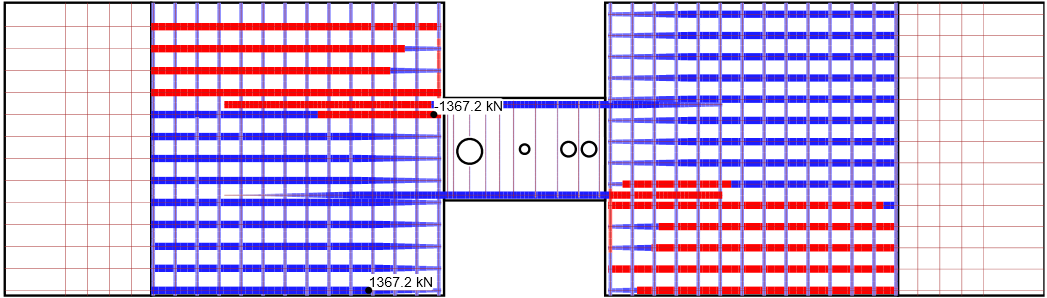

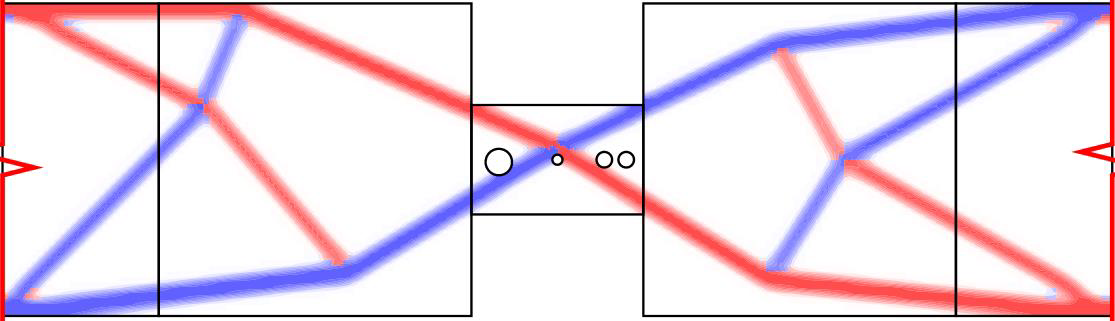

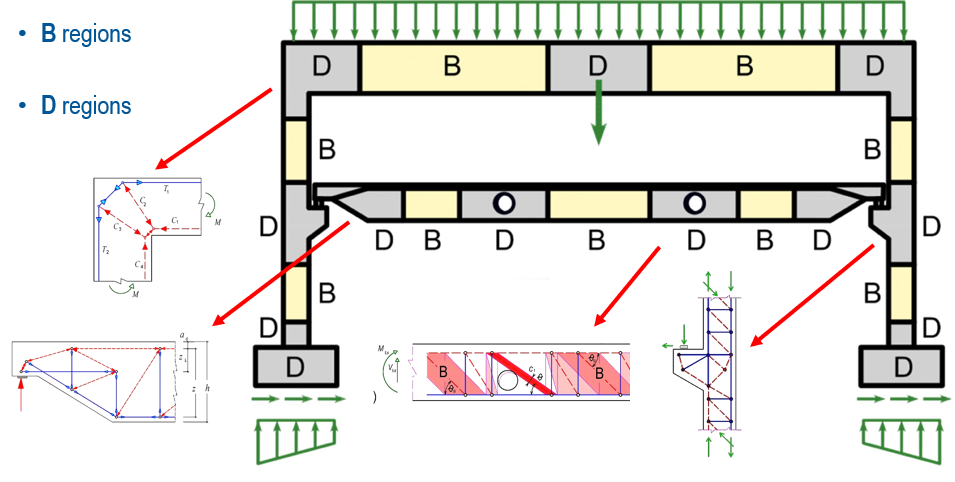

Detail 2D addresses discontinuity regions such as walls and beams with openings, diaphragms, dapped ends, brackets, pile caps and frame joints (see the figure below). These are regions where classical beam theory is not applicable, and where simplified Strut-and-Tie Method assumptions may be limited, particularly when serviceability, cracking behaviour and force compatibility govern design. In these cases, structural response is driven by internal force redistribution rather than simple sectional action.

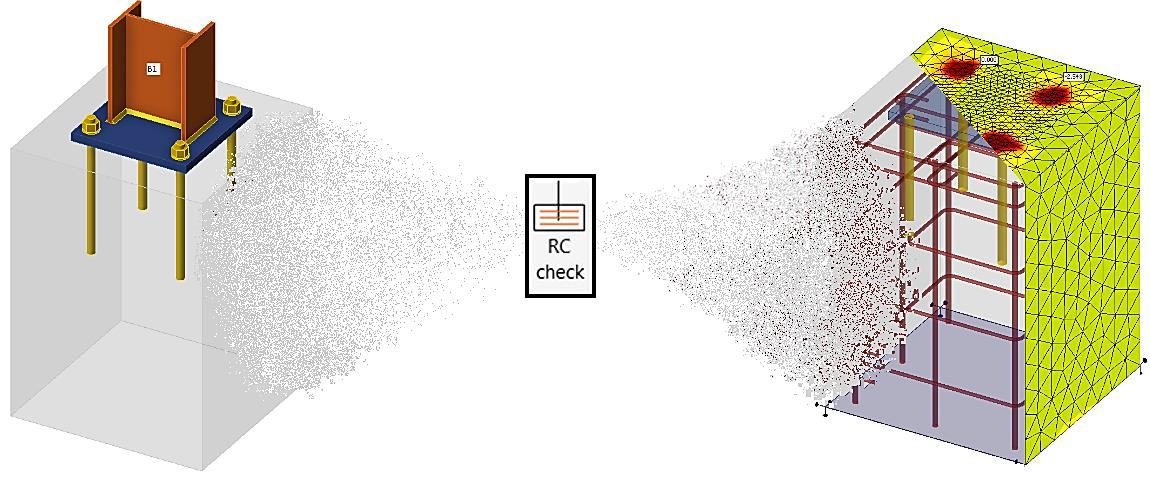

Detail 3D extends this philosophy into three dimensions. As illustrated in the following figure, it enables realistic modelling of reinforcement, anchors and general foundation blocks, with 3D CSFM analysis at ULS and direct import of base plates and anchors from the IDEA StatiCa Connection application. It is intended for load transfer through anchors, shear lugs or friction, while also allowing the contribution of supplementary reinforcement to be considered in accordance with AS 5216, Clauses 3.4.2.1 and 3.4.2.2 where applicable.

As a result, anchor forces can be redistributed through concrete, reinforcement and anchorage components as an integrated system rather than assessed using isolated capacity checks. This supports a more consistent representation of force transfer compared with isolated capacity checks, while remaining aligned with AS based material models and verification requirements.

Standards do not forbid advanced analysis

A common misconception in practice is that finite element or nonlinear analysis falls outside the intent of AS3600. In reality, the standard permits and provides a framework for these methods when they are appropriate for the level of structural behaviour being assessed.

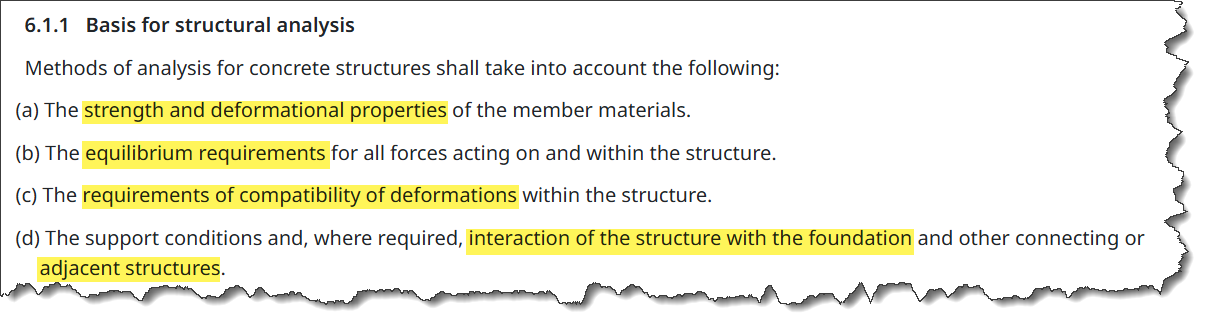

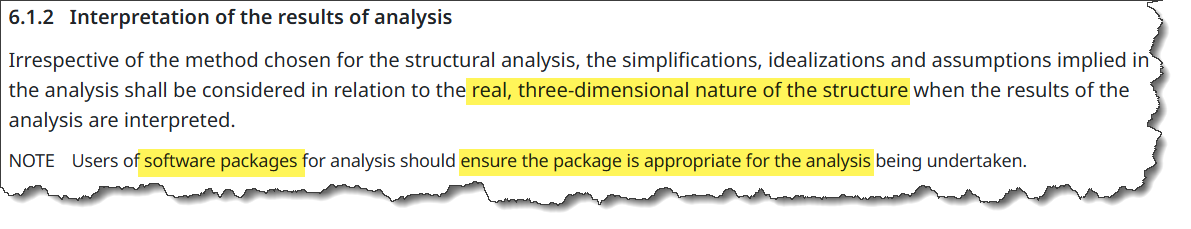

Section 6 of AS 3600:2018, titled Methods of Structural Analysis, establishes the framework. Clauses 6.1.1 and 6.1.2 state that analytical methods shall consider real three-dimensional structural model deliberating equilibrium, compatibility of deformations, material strength and deformation properties, and the interaction with supports and connected members.

For reinforced and prestressed concrete structures, the determination of action effects and deformations is permitted by the code using a range of methods, explicitly including linear elastic stress analysis and non-linear stress analysis of members and structures. These permissions are clearly identified through references to Clauses 6.4, 6.5 and 6.6.

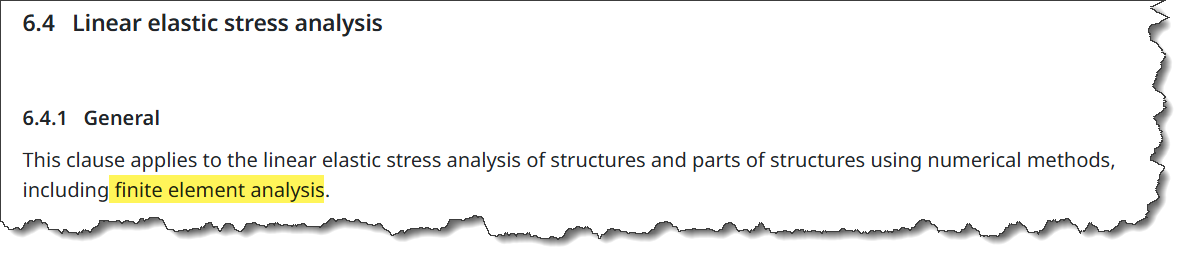

Clause 6.4 permits the use of linear elastic stress analysis, including numerical methods such as finite element analysis, for parts or the whole of a structure.

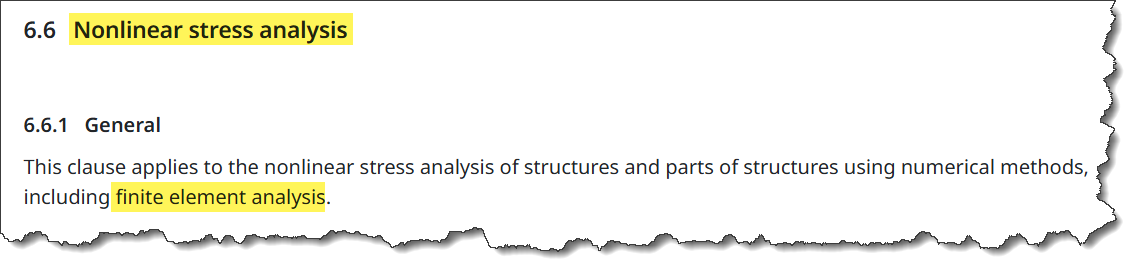

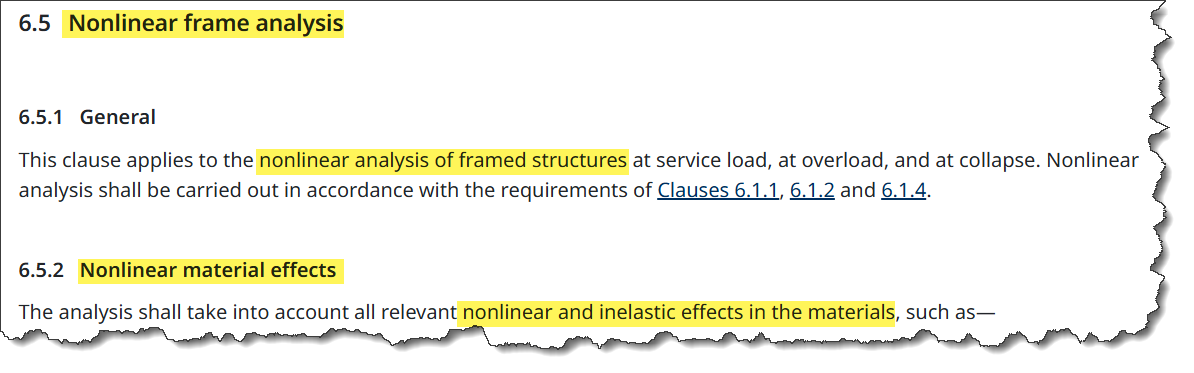

Clauses 6.5 and 6.6 then goes further, explicitly permitting non-linear stress analysis, provided that the modelling assumptions, material laws and interpretation of results are consistent with structural mechanics principles.

The standard also notes that analysis tools and software should be appropriate for the intended application. This aligns with the approach in IDEA StatiCa Detail, where material models, verification checks and reporting are governed by the selected design code.

In this context, AS 3600 supports the use of advanced analysis methods where simplified approaches are not sufficient to represent structural behaviour, provided the modelling approach remains consistent with the standard’s requirements.

From standards permission to daily engineering practice

The value of IDEA StatiCa Detail lies in how these permissions are translated into usable engineering workflows. By embedding AS 3600 material models, terminology and verification checks into the software, engineers can focus more on interpretation of results and design decisions, rather than manual formulation of intermediate calculations.

Crack widths, stress limits, anchorage forces and reinforcement utilisation are assessed directly against AS 3600 criteria, while the stress and strain distributions remain visible and traceable throughout the model.

For Australian projects dealing with construction tolerances, reinforcement congestion and fabrication cost pressures, the ability to visualise load paths and refine anchorage and reinforcement layouts can improve constructability while remaining aligned with AS 3600 requirements.


How Australian engineers are using Detail application in practice

Some engineering consultancies in Australia have integrated IDEA StatiCa Detail into their concrete design workflows, particularly on projects where conventional hand methods are not sufficient to clearly represent load transfer and local behaviour.

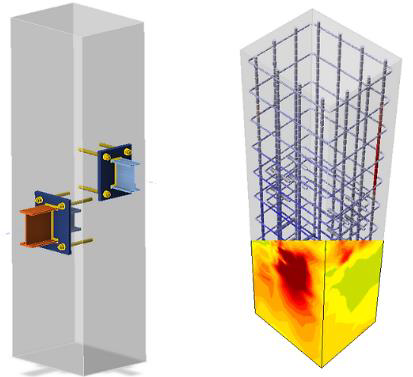

AECOM Australia has referenced the use of IDEA StatiCa in complex connection and interface modelling, particularly where steel and concrete systems interact and force paths are non-intuitive. In such scenarios, Detail 3D enables anchorage zones to be assessed as part of the global load transfer mechanism rather than as isolated components.

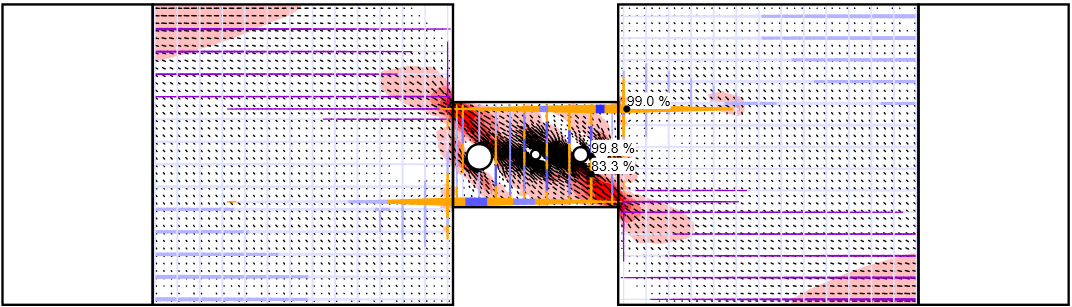

HERA Engineering has also been associated with the use of advanced modelling tools to rationalise detailing in transfer structures and heavily loaded coupling beams, where serviceability considerations and cracking control are critical. Detail 2D provides a practical way to understand how reinforcement engages around disturbed regions, instead of relying solely on conservative design rules.

Final Word

The implementation of AS 3600 in IDEA StatiCa Detail is not just a software update, it reflects a broader trend in Australian structural engineering towards performance-based and mechanics-based analysis. As codes increasingly acknowledge performance-based and mechanics-based analysis, engineers are no longer constrained to choose between compliance and insight.

Detail 2D and Detail 3D provide Australian engineers with a structured pathway to apply finite element and nonlinear analysis in regions where simplified methods are limited, particularly at interfaces, discontinuities and structural details that govern constructability and long term performance.

When used appropriately, these tools support engineering judgement rather than replace it, allowing more informed interpretation of complex structural behaviour. This approach is consistent with the principles and analysis framework outlined in AS 3600.
